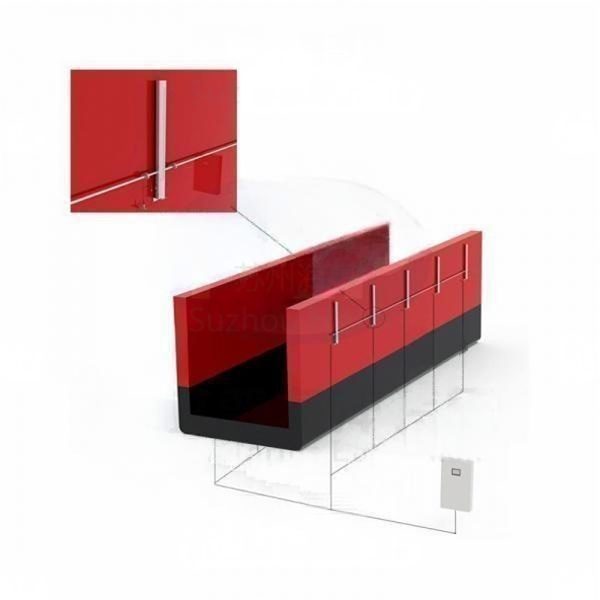

The dock wall deflection monitoring system is used to monitor the deflection and deformation values of the dock. The system uses 5-7 pressure sensors distributed in the left and right walls of the dock to monitor the deflection and deformation of the dock. The signals of the sensors are collected by a data acquisition box and the measurement data is displayed by an instrument. The data is sent to the monitoring computer through communication, and the computer judges the monitoring data of 10-14 points. After technical processing, it is displayed by analog board digital display+LCD graph display. At the same time, there is a sound and light alarm for exceeding the deflection and deformation value of the dock wall.
